Re: [ULF-1] Ulf-1 Digest, Vol 37, Issue 1

From
Member 64
Date
2011-11-08 16:41 UTC
Message
#0285
Attachments

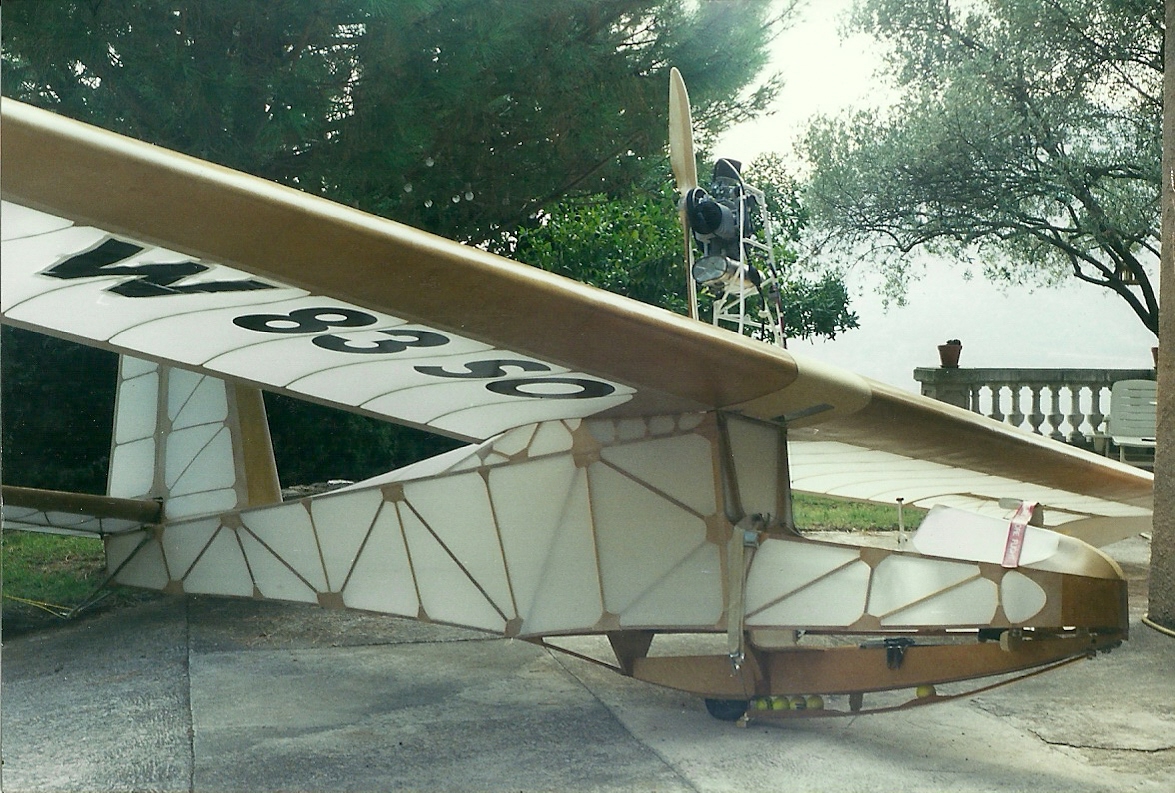

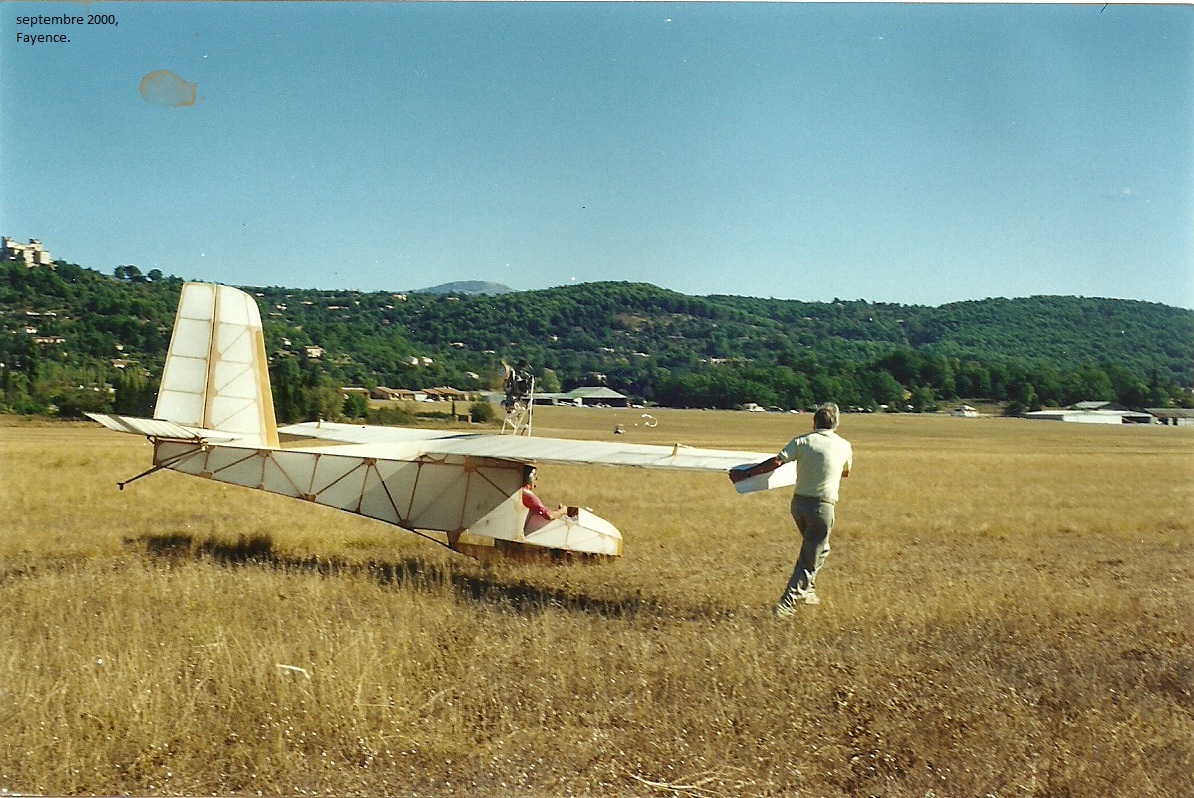

Hello, everybody,In 2000, I fitted my ULF1 with a 18hp two-stroke, two-cylinder engine (1st picture)By a beautiful september day in Fayence, Var, south of France near Cannes, I tried it. As soon as power was applied, the glider settled on its nose, refusing to move forward (2sd picture).

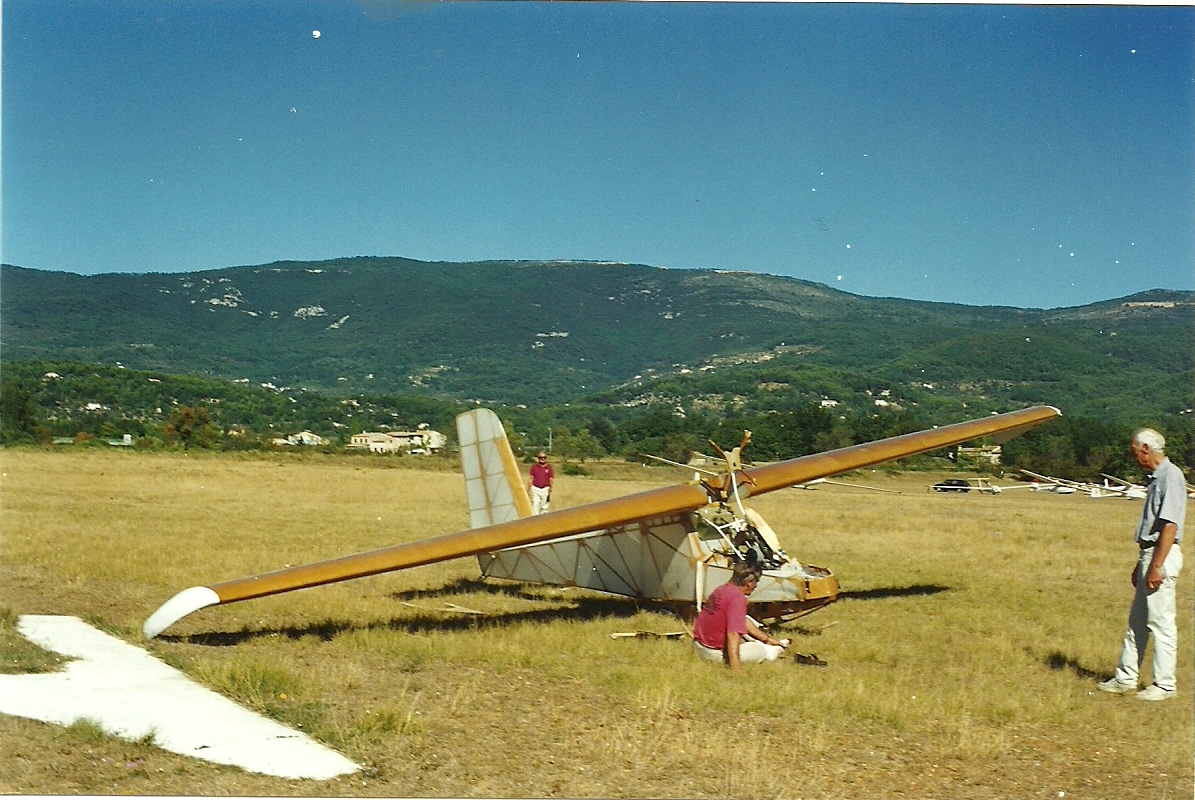

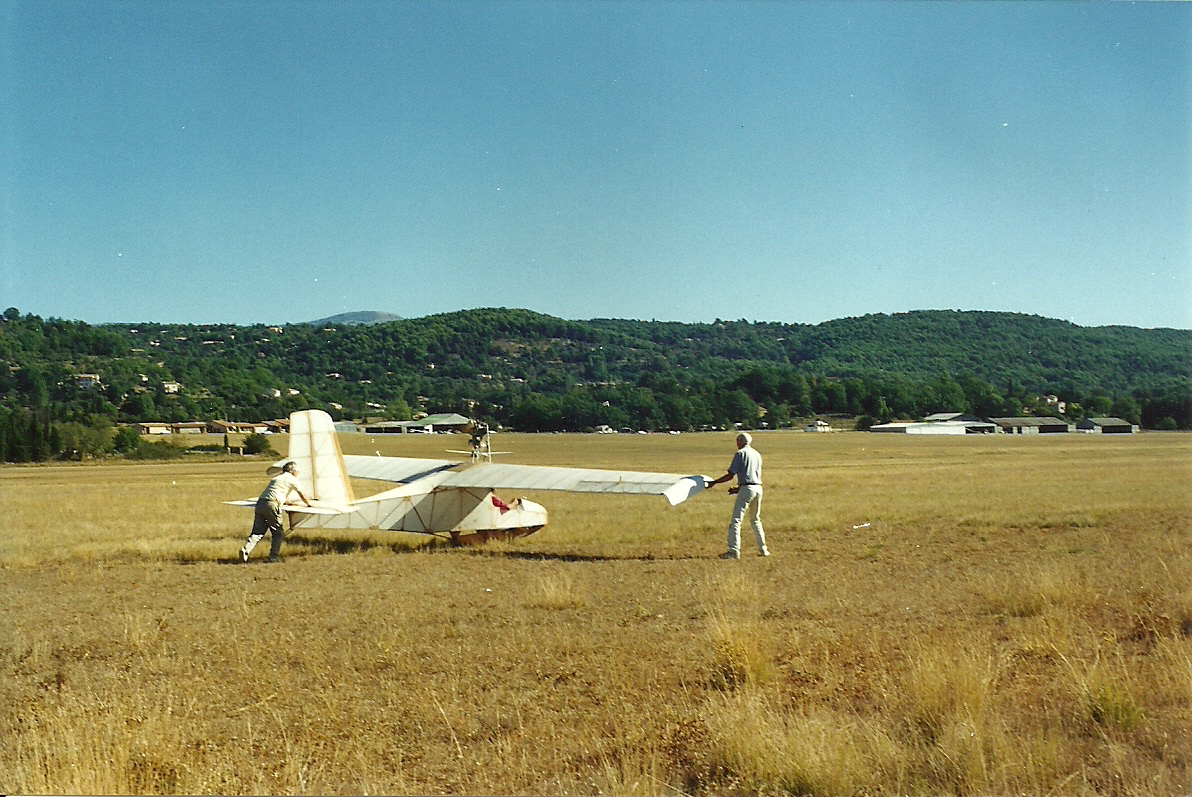

A guy around there said: "Maintain the tail on the ground and, when reaching speed, you'll have control on the elevator."Bad idea, indeed: my buddy couldn't possibly run up to 10 kmh in this attitude (3rd picture) with his knees in poor shape. After a few meter-run and with full power applied, he let it go: the glider went back on its nose and stopped abruptly. The engine continued, describing a 90° degree-arc forward and down. Usually, props cut fingers, hands, arms or, worse, heads. Here, it was the left big toe, partially.
Probably a first.The good thing: the prop was propulsive. If I had designed the motorization with a tractive one, I wouldn't be telling the story...Conclusion: the ULF1 is not designed to be motorized. Buy the ULF2 plans.Good evening to all of you.André Member 64.
> From: [email]
> Subject: Ulf-1 Digest, Vol 37, Issue 1
> To: [email]
> Date: Mon, 7 Nov 2011 10:49:27 -0800
>
> Send Ulf-1 mailing list submissions to
> 	[email]
>
> To subscribe or unsubscribe via the World Wide Web, visit
> 	http://lists.ulf-1.com/listinfo.cgi/ulf-1-ulf-1.com
> or, via email, send a message with subject or body 'help' to
> 	[email]
>
> You can reach the person managing the list at
> 	[email]
>
> When replying, please edit your Subject line so it is more specific
> than "Re: Contents of Ulf-1 digest..."
>
>
> Today's Topics:
>
>    1. Adding an engine or electric motor to a Ulf-1
>       ([email])
>    2. Re: Adding an engine or electric motor to a Ulf-1
>       (Member 73)
>    3. Re: Adding an engine or electric motor to a Ulf-1
>       ([email])
>    4. Re: Adding an engine or electric motor to a Ulf-1
>       (Member 74)
>
>
> ----------------------------------------------------------------------
>
> Message: 1
> Date: Sun, 6 Nov 2011 20:56:47 -0500
> From: <[email]>
> To: [email]
> Subject: [ULF-1] Adding an engine or electric motor to a Ulf-1
> Message-ID: <[phone].OQK37.22407.root@cdptpa-web05-z02>
> Content-Type: text/plain; charset=utf-8
>
> Hi,
>
> I am just new to the list.  I am an experienced motorglider pilot and am considering building a Ulf-1 to explore microlift and to be able to soar on marginal lift days.
>
> Before I commit to building, I need to know if any Ulf-1's have been successfully powered to self-launch to soaring altitude.  Has anyone successfully made a motorglider out of a Ulf-1?  If so, how was it done?  I would really like to go the electric motor route if possible, but would consider a gas engine too.
>
> Many thanks,
> Member 72
>
>
>
>
> ------------------------------
>
> Message: 2
> Date: Sun, 06 Nov 2011 21:26:02 -0600
> From: Member 73 <[email]>
> To: [email]
> Subject: Re: [ULF-1] Adding an engine or electric motor to a Ulf-1
> Message-ID: <[email]>
> Content-Type: text/plain; charset=ISO-8859-1; format=flowed
>
> Member 67,
>
> There are some photos of a ground-skimming powered ULF-1 at:
>
> http://ulf-1.com/stills/index.htm
>
> Maybe Dieter will tell us what he knows of this project?
>
> Doug
>
>
> On [phone]:56 PM, [email] wrote:
> > Hi,
> >
> > I am just new to the list.  I am an experienced motorglider pilot and am considering building a Ulf-1 to explore microlift and to be able to soar on marginal lift days.
> >
> > Before I commit to building, I need to know if any Ulf-1's have been successfully powered to self-launch to soaring altitude.  Has anyone successfully made a motorglider out of a Ulf-1?  If so, how was it done?  I would really like to go the electric motor route if possible, but would consider a gas engine too.
> >
> > Many thanks,
> > Member 72
> >
> >
> > _______________________________________________
> > ULF-1 discussion list -- [email]
> >
> > Subscribe, Unsubscribe, Preferences, List information:
> > http://lists.ulf-1.com/listinfo.cgi/ulf-1-ulf-1.com
> >
>
>
>
> ------------------------------
>
> Message: 3
> Date: Mon, 7 Nov 2011 11:00:14 -0500
> From: <[email]>
> To: [email]
> Subject: Re: [ULF-1] Adding an engine or electric motor to a Ulf-1
> Message-ID: <[phone].6EQSW.19063.root@cdptpa-web15-z01>
> Content-Type: text/plain; charset=utf-8
>
> Doug,
>
> Thanks for the reply.  I saw the video of the ground skimming Ulf-1 on YouTube. I could not make out any details of the powerplant used.
>
> At Oshkosh this year there was a Lazair ultralight powered with 2 brushless motors (one on each wing) powered by R/C lithium polymer batteries wired is series. I am wondering if something like this could be done with the Ulf-1?
>
> Member 67
>
>
>
> ---- Member 73 <[email]> wrote:
> > Member 67,
> >
> > There are some photos of a ground-skimming powered ULF-1 at:
> >
> > http://ulf-1.com/stills/index.htm
> >
> > Maybe Dieter will tell us what he knows of this project?
> >
> > Doug
> >
> >
> > On [phone]:56 PM, [email] wrote:
> > > Hi,
> > >
> > > I am just new to the list.  I am an experienced motorglider pilot and am considering building a Ulf-1 to explore microlift and to be able to soar on marginal lift days.
> > >
> > > Before I commit to building, I need to know if any Ulf-1's have been successfully powered to self-launch to soaring altitude.  Has anyone successfully made a motorglider out of a Ulf-1?  If so, how was it done?  I would really like to go the electric motor route if possible, but would consider a gas engine too.
> > >
> > > Many thanks,
> > > Member 72
> > >
> > >
> > > _______________________________________________
> > > ULF-1 discussion list -- [email]
> > >
> > > Subscribe, Unsubscribe, Preferences, List information:
> > > http://lists.ulf-1.com/listinfo.cgi/ulf-1-ulf-1.com
> > >
> >
> > _______________________________________________
> > ULF-1 discussion list -- [email]
> >
> > Subscribe, Unsubscribe, Preferences, List information:
> > http://lists.ulf-1.com/listinfo.cgi/ulf-1-ulf-1.com
>
>
>
> ------------------------------
>
> Message: 4
> Date: Mon, 7 Nov 2011 08:30:45 -0800
> From: Member 74 <[email]>
> To: [email]
> Subject: Re: [ULF-1] Adding an engine or electric motor to a Ulf-1
> Message-ID:
> 	<[email]>
> Content-Type: text/plain; charset=us-ascii
>
> I believe I read about a pylon powered ULF (maybe the one pictured?) that had a hard time taking off and the pylon ripped off and tipped forward and the prop sliced the guy's foot.  I recall a comment on the article that if had been a tractor instead of a pusher it would've been a lot worse.
>
> But then I could be wrong and it wasn't even a ULF, but I think it was.
>
> I've been curious by inside the cockpit photos that show up to the nose what appears to be a good size chunk of lead in the nose for balance.  First, if that is the case, seems like the nose should be lengthened a bit and move the pilot forward a bit to save the weight, but two, if it is lead, it could be a motor instead.  Maybe electric motor with folding prop.
> Member 4
>
> On Nov 6, 2011, at 7:26 PM, Member 73 wrote:
>
> > Member 67,
> >
> > There are some photos of a ground-skimming powered ULF-1 at:
> >
> > http://ulf-1.com/stills/index.htm
> >
> > Maybe Dieter will tell us what he knows of this project?
> >
> > Doug
> >
> >
> > On [phone]:56 PM, [email] wrote:
> >> Hi,
> >>
> >> I am just new to the list.  I am an experienced motorglider pilot and am considering building a Ulf-1 to explore microlift and to be able to soar on marginal lift days.
> >>
> >> Before I commit to building, I need to know if any Ulf-1's have been successfully powered to self-launch to soaring altitude.  Has anyone successfully made a motorglider out of a Ulf-1?  If so, how was it done?  I would really like to go the electric motor route if possible, but would consider a gas engine too.
> >>
> >> Many thanks,
> >> Member 72
> >>
> >>
> >> _______________________________________________
> >> ULF-1 discussion list -- [email]
> >>
> >> Subscribe, Unsubscribe, Preferences, List information:
> >> http://lists.ulf-1.com/listinfo.cgi/ulf-1-ulf-1.com
> >>
> >
> > _______________________________________________
> > ULF-1 discussion list -- [email]
> >
> > Subscribe, Unsubscribe, Preferences, List information:
> > http://lists.ulf-1.com/listinfo.cgi/ulf-1-ulf-1.com
>
>
>
> ------------------------------
>
> _______________________________________________
> Ulf-1 mailing list
> [email]
> http://lists.ulf-1.com/listinfo.cgi/ulf-1-ulf-1.com
>
>
> End of Ulf-1 Digest, Vol 37, Issue 1
> ************************************
