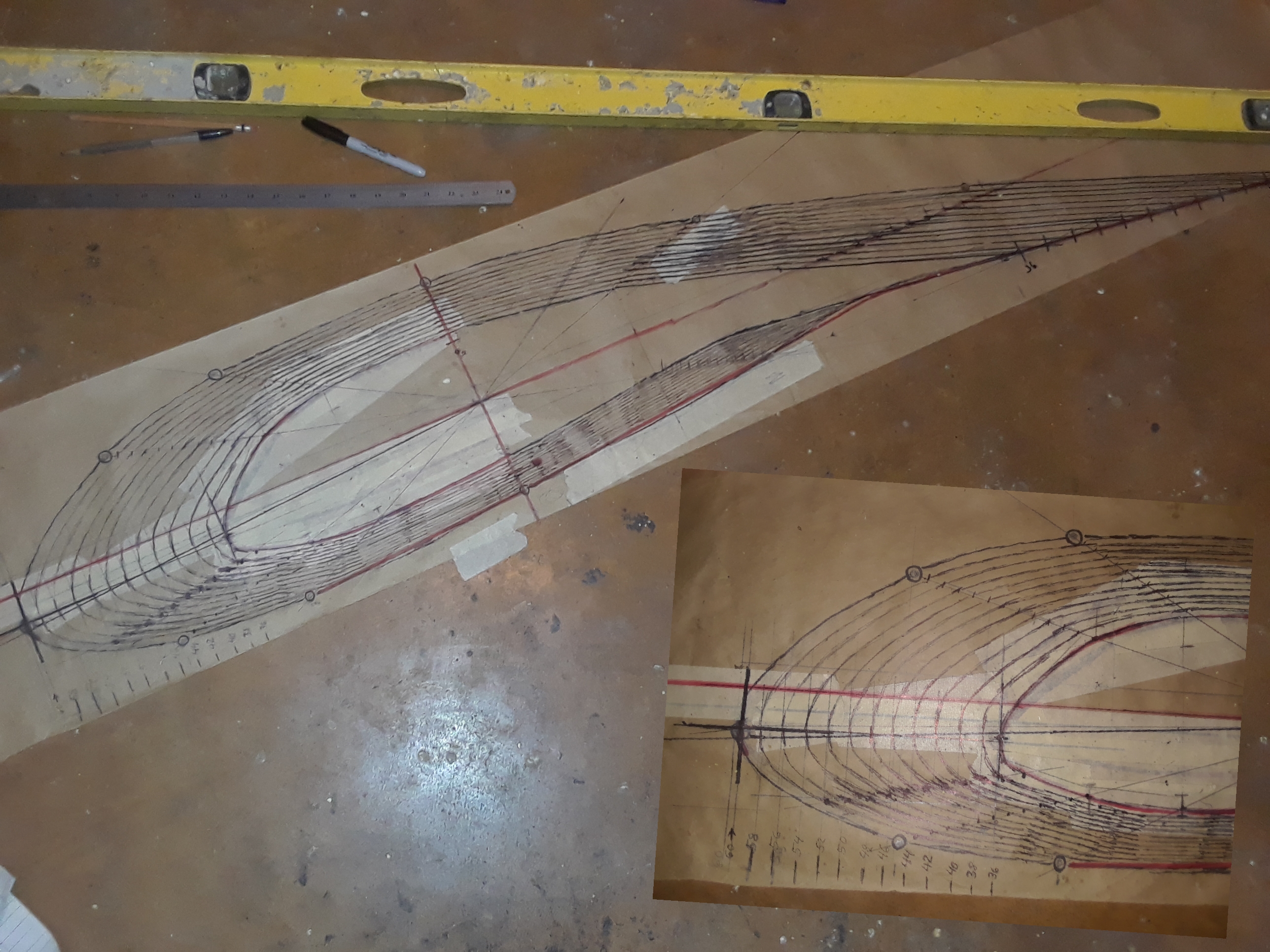

My attempt at drawing rib patterns so far . I think if it was taped to the
table with plastic over it , it could guide length and height by putting
little blocks at the ends . I mean leading and trailing edges . Top and
bottom and some to hold sticks bent connecting points of importance .
   I want to cross brace the tops if th spars and the bottoms of the spars

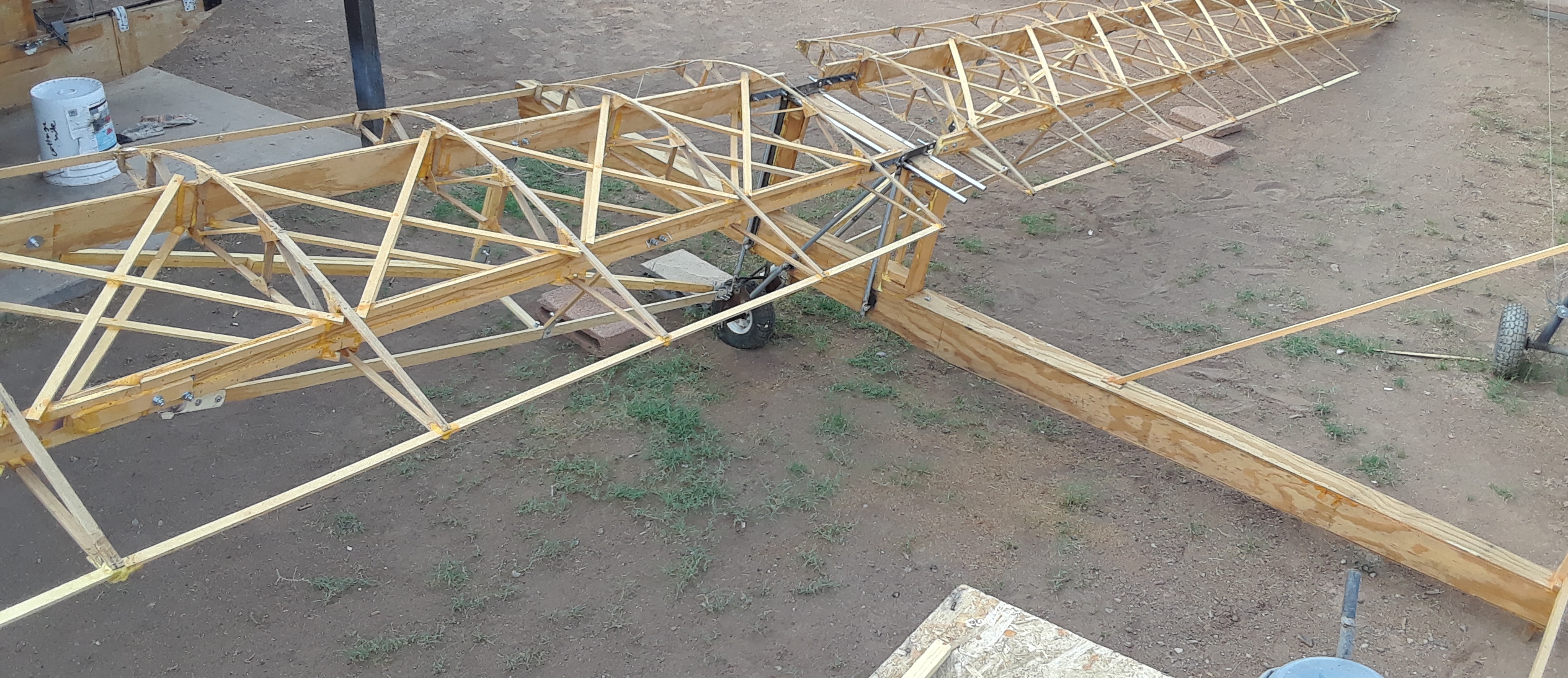

to get rid of the thin plywood . Similar to this picture of a 36 foot span
wing with struts . Get rid of the struts . It gets pretty stiff or rigid
that way .
